VARIANT VX
product image

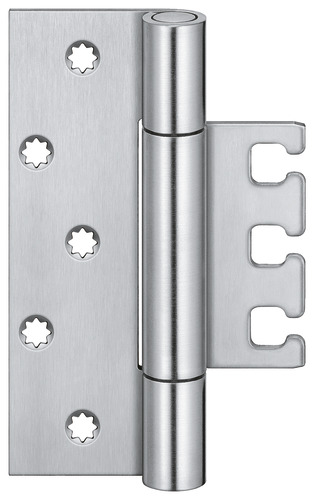

VX 7729/160 x 4-1/2" K Kit
For high performance commercial doors
* Figures and finishes similar
VX 7729/160 x 4-1/2" K Kit
For high performance commercial doors
Product features
Technical details
Load capacity
200.0 kg (440.0 lbs.)
Knuckle diameter
22.5 mm (0.886")
Length (door part)
160.0 mm (6.299")
Cutter diameter
24.0 mm
Collar ring diameter
30.0 mm
Material thickness
3.5 mm (0.138")
Screws
5.0 x 50.0 mm (#12")
Suitable for
Type of door leaf
wood, hollow metal
Rebate
flush
Type of frame
hollow metal frames
Function range
- Fire Resistant
- Smoke Resistant
Note
Descriptive text
Quality marks
Certification UL (Canada)Item versions
Satin Stainless Steel (SW 040)
Product information
Brochures
CAD drawings
Certificates
